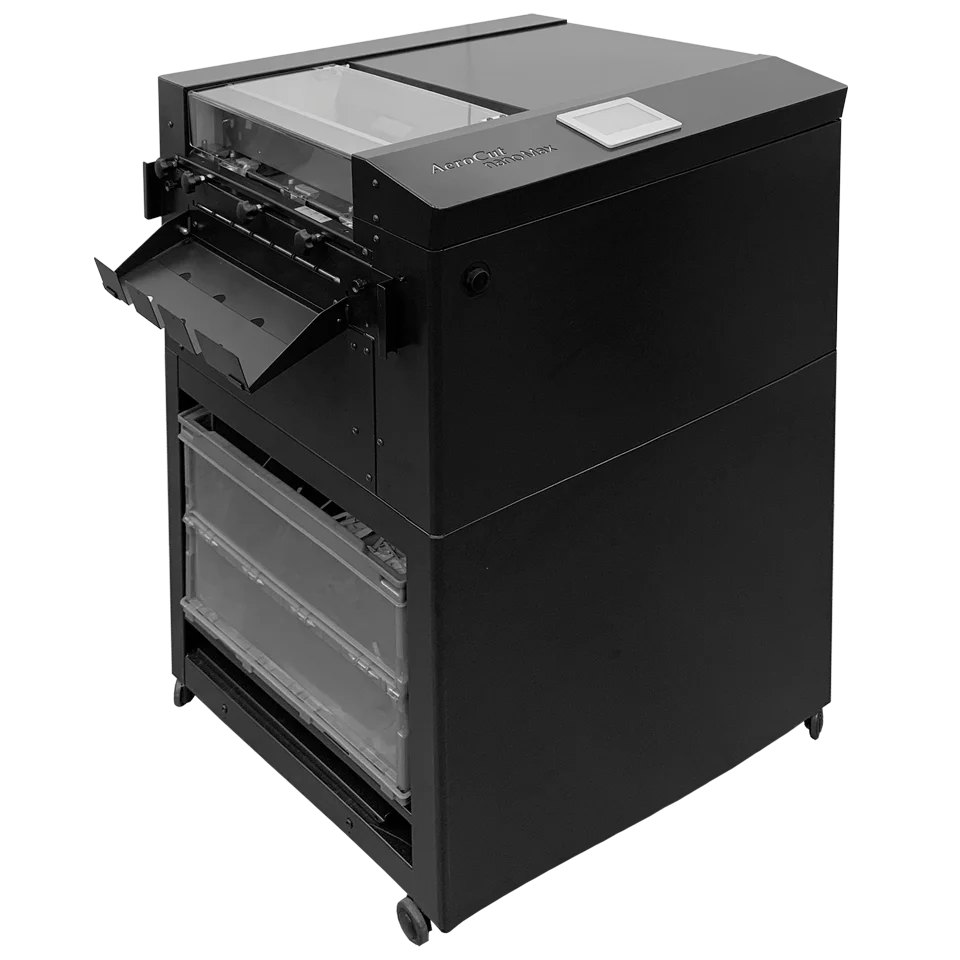

PDF AeroCut-nanoMax.pdfProduct literature · opens in a new tabAeroCut nanoMax
Slitter Cutter
Quick & easy tool-free slitter position settings with 4 InstaSet Bars included and new Fine Adjustment Knob
The AeroCut nanoMax is equipped with a color touch screen, and comes pre-programmed with 31 jobs, can store up to 80 additional custom programs, including Flex Mode programs as well
Image shift & stretch compensation function help an operator to make fine adjustments to digitally printed stocks.
The patented Tri-Suction Feeding Mechanism reduces risks of double feeds and mis-feeds drastically, therefore preventing paper jams inside and enhancing productivity.
Feed table elevates and lowers to separate digital stocks to avoid misfeeds and/or markings
Self-correcting cut mark registration feature ensures accurate cuts every time
Density sensor for true double feed detection resulting in faster run times and greater accuracy
Handles a variety of digital stocks with weights up to 400 gsm and sheet sizes up to 13″ x 19″
AeroCut nanoMax sales, demos and service: same-day response, service within 24–48 business hours
Factory-trained technicians across all 7 New England states
Features
- Quick & easy tool-free slitter position settings with InstaSet Bar and new Fine Adjustment Knob
- Skew adjustment
- Cut-mark registration
- Double feed detection
- Intuitive touch screen operation
- Image shift & image stretch compensation
- 31 Preset jobs with 4 Factory InstaSet Bars included
- 80 custom job memories
- Easy access to slitter units and paper exit
- Quick and easy maintenance
Specifications
| Speed | 23 sheets/min. |
|---|---|
| Sheet Capacity | 1.2" |
| Paper Weight | 120-400 gsm |
| Paper Size | 8.2" x 8.2" to 13" x 19" |
| Electrical Requirements | 100-120V, 50-60Hz |
| Dimensions (D x W x H) | 25.7" x 30.2" x 39.8" |
| Weight | 212 lbs. |
Frequently Asked Questions
Request a quote using the form above or give us a call. We’ll follow up with pricing and availability for the configuration you need.
Yes. Request a demo and we’ll arrange to show you the equipment and walk you through how it works.
Yes. McIntire Business Products repairs and services the AeroCut nanoMax across all 7 New England states. We respond the same day, and service is within 24 to 48 business hours. Call (800) 847-2463 or use Request a Technician.
Call (800) 847-2463 or use the Request a Technician form. We respond the same day, with service within 24 to 48 business hours across all 7 New England states.
Delivery and setup options are arranged when you place your order. Just ask and we’ll walk you through what’s involved.
Ideal for
Print & copy shops
Built for high daily volume and repeat jobs, with the throughput and reliability production work demands.
Corporate offices
In-house collateral, presentations, and finishing — intuitive controls mean minimal training for staff.
Schools & universities
Durable, safe operation for shared institutional environments and everyday classroom and admin use.
